Portail en porte à faux

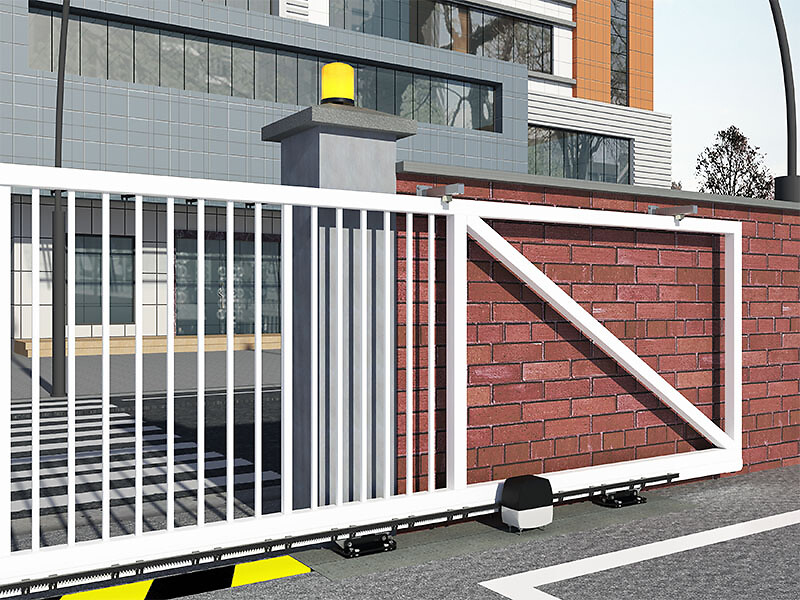

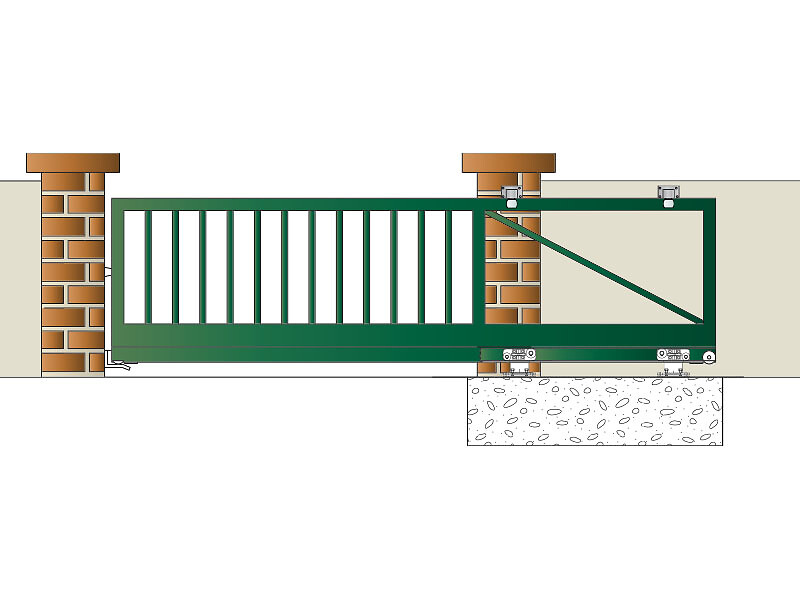

The gate is designed without a ground track.
The tubular track is welded or bolted underneath the gate.
The gate runs on two hangers fixed to a concrete foundation on the stacking side.
Depending on the gate opening position, the hangers bear against either the top or bottom of the track (S version).
In the PAF version, the rollers remain in permanent contact with both the upper and lower parts of the track, minimising play.
PAF hangers are especially recommended for automated gates.
ADVANTAGES:
- No ground track required
- No concrete beam needed to secure or support the track
- Civil engineering work limited to the foundation block
- No risk of track wear or deformation
- No track deformation caused by vehicle traffic (e.g. lorries)
- No operating issues due to ground settlement or subsidence
- No obstruction of the track by dust, gravel, asphalt or debris
- No operating issues caused by frost or snow
- The gate can be installed on unstable ground (soil, grass, gravel, etc.)
- The ground does not need to be perfectly level
Gama Portail en porte à faux oferuje szeroki wybór konfiguracji, dzięki czemu z pewnością znajdziesz rozwiązanie dopasowane do Twojego projektu
ODKRYJ GAMĘ
Configurez votre projet
PEŁNY OPIS
The gate is designed without a ground track.
The tubular track is welded or bolted underneath the gate.
The gate runs on two hangers fixed to a concrete foundation on the stacking side.
Depending on the gate opening position, the hangers bear against either the top or bottom of the track (S version).
In the PAF version, the rollers remain in permanent contact with both the upper and lower parts of the track, minimising play.
PAF hangers are especially recommended for automated gates.
ADVANTAGES:
- No ground track required
- No concrete beam needed to secure or support the track
- Civil engineering work limited to the foundation block
- No risk of track wear or deformation
- No track deformation caused by vehicle traffic (e.g. lorries)
- No operating issues due to ground settlement or subsidence
- No obstruction of the track by dust, gravel, asphalt or debris
- No operating issues caused by frost or snow
- The gate can be installed on unstable ground (soil, grass, gravel, etc.)
- The ground does not need to be perfectly level
Produkt o perfekcyjnym wykończeniu zapewniający wyjątkowy efekt.
Porada MANTION :
Dimensionnez votre portail en fonction de votre configuration grâce à notre configurateur en ligne : https://soft.mantion.com/Mantion/?langue=fr
Karta techniczna
| Typ systemu |
Wspornikowy |
| Kraj produkcji |
Francja |
| Marka |
MANTION |
| Zastosowanie |
Brama |
| Zakres wagowy |
Jusqu' à 250 kg (Porte à faux sur rail aluminium) Jusqu'à 1090 kg (Porte à faux sur rail acier) |
ODKRYJ GAMĘ Portail en porte à faux
CONFIGUREZ
votre projet
Configurez votre projet en quelques clics grâce à notre configurateur en ligne. Obtenez une étude personnalisée et un devis adapté à vos besoins.
Vous pouvez également parcourir tous les produits de la gamme :
Wybierz swoje Prowadnica(e) (13 produkty)
Wybierz swoje Wykończenie(a) (1 produkt)
Wybierz swoje Ramka(i) (12 produkty)
Wybierz swoje Rolka(i) (2 produkty)
Wybierz swoje Uchwyt(y) obejmujący(e) (3 produkty)
Wybierz swoje Dolny(e) prowadnik(i) (3 produkty)
Wybierz swoje Akcesorium (akcesoria) (2 produkty)
