PEŁNY OPIS

WIN-SLIDE 2 is a French-manufactured system for sliding shutters and sun-breakers, backed by a 12-year warranty. This premium sliding system is certified, more compact and offers improved rigidity, resulting in greater wind resistance.

A sliding shutter solution available in multiple configurations: 1, 2, 3 or 4 sliding panels.

The system can be operated manually, synchronised or motorised (with wired or radio control). The motorisation systems are also „Made in MANTION”, as they are manufactured by our subsidiary MANTION SMT, located in Genlis, France.

Suitable for both new-build and renovation projects, WIN-SLIDE 2 is an ideal solution for architectural applications.

WIN-SLIDE 2 is compatible with a wide range of materials including wood, PVC, aluminium and hybrid structures. It is also available in a „Seaside” version offering enhanced resistance to corrosive environments.

High-quality Made in France product, backed by a 12-year warranty and tested for 20,000 cycles, in accordance with the new XP P 26-335 standard for façade-mounted movable protection hardware.

WIN-SLIDE 2 adapts to every configuration thanks to its many options.

Technical characteristics:

• Maximum weight per panel: 120 kg
• Panel thickness: 25 to 40 mm (up to 80 mm for sun-breakers)

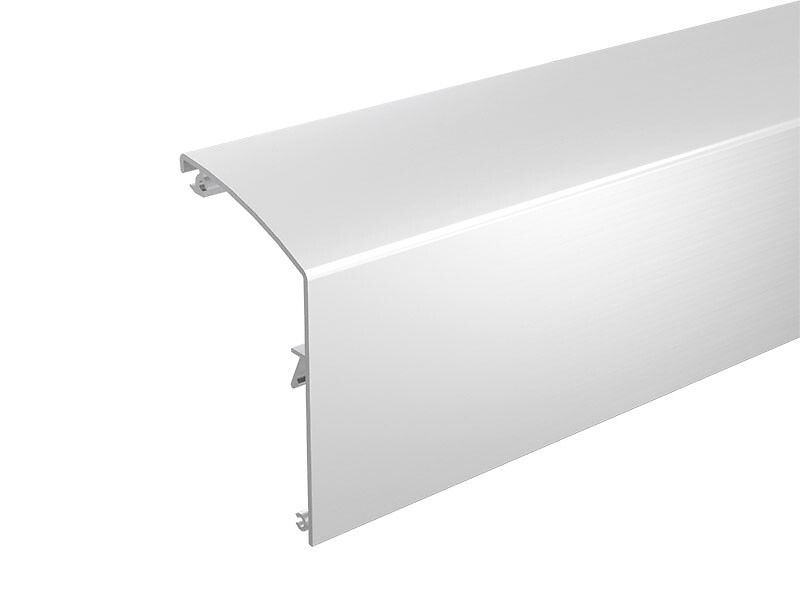

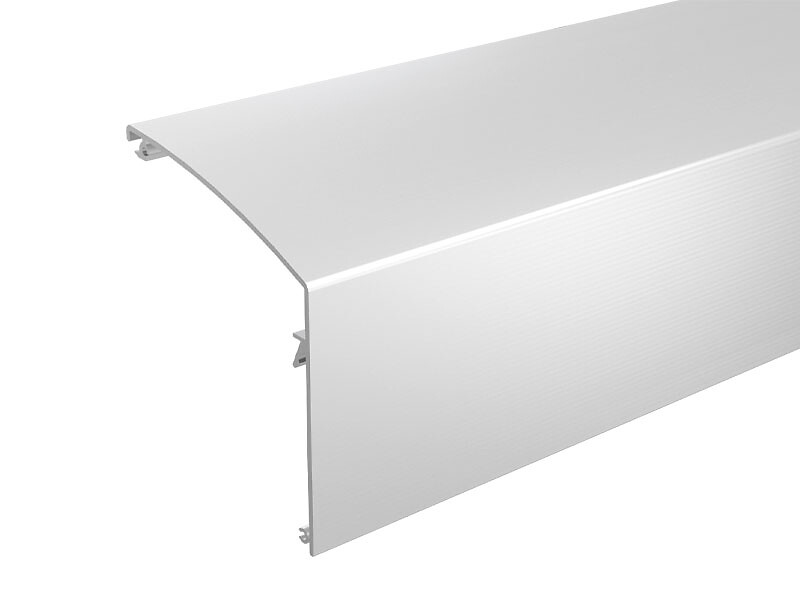

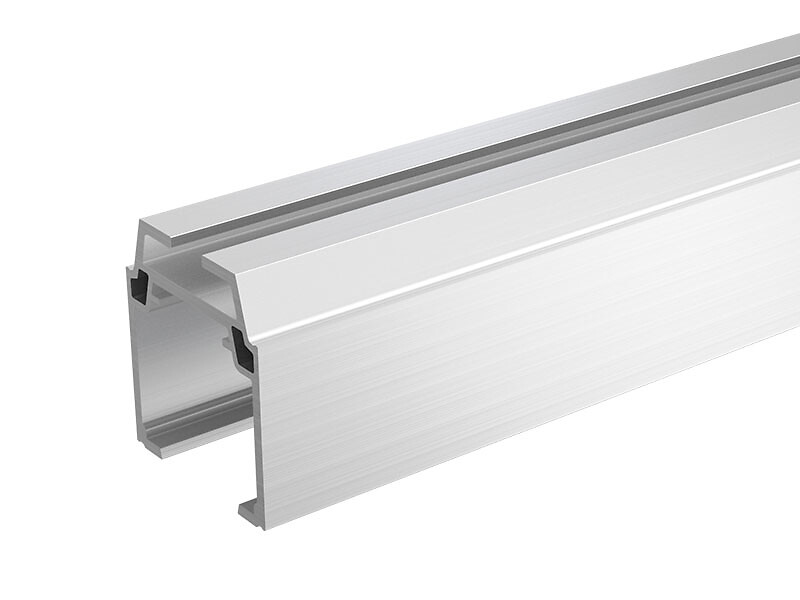

• Aluminium track lengths: 2 to 6 m
• New-generation dampers

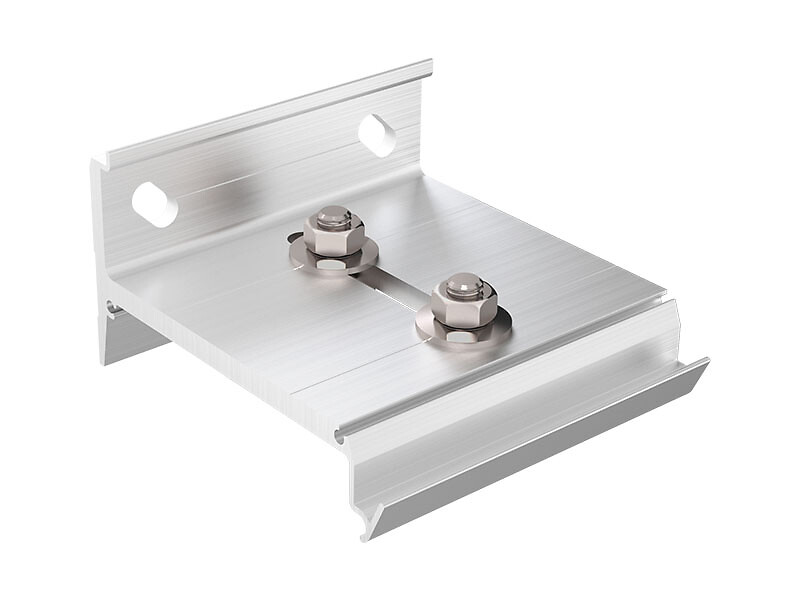

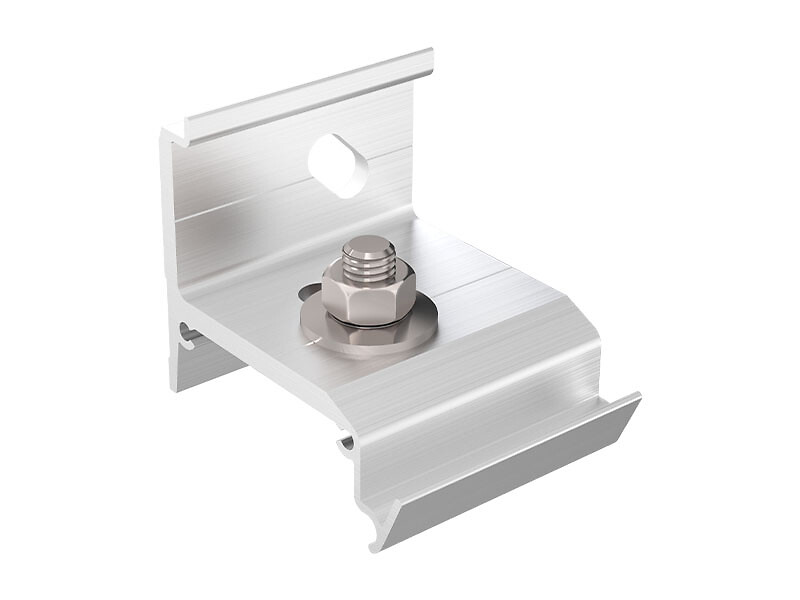

• Wall or ceiling mounted installation
• Reduced installation time thanks to optimised fixing spacing

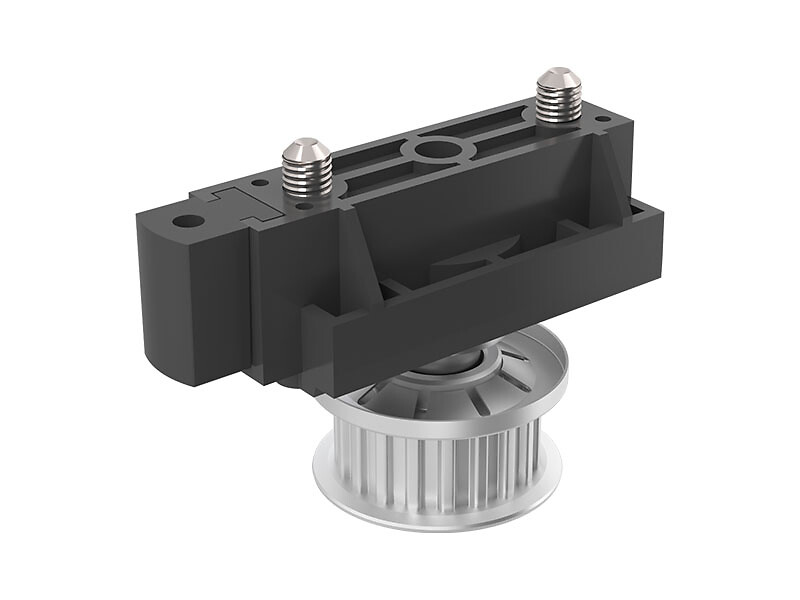

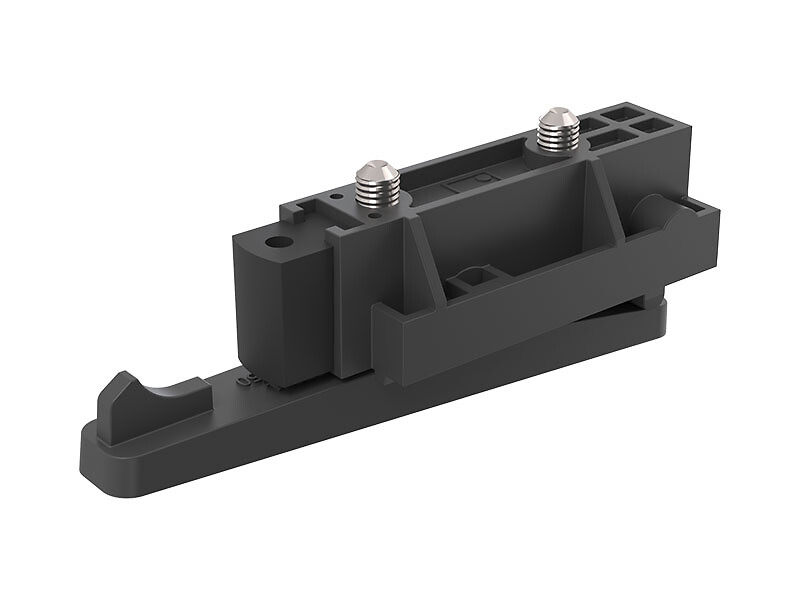

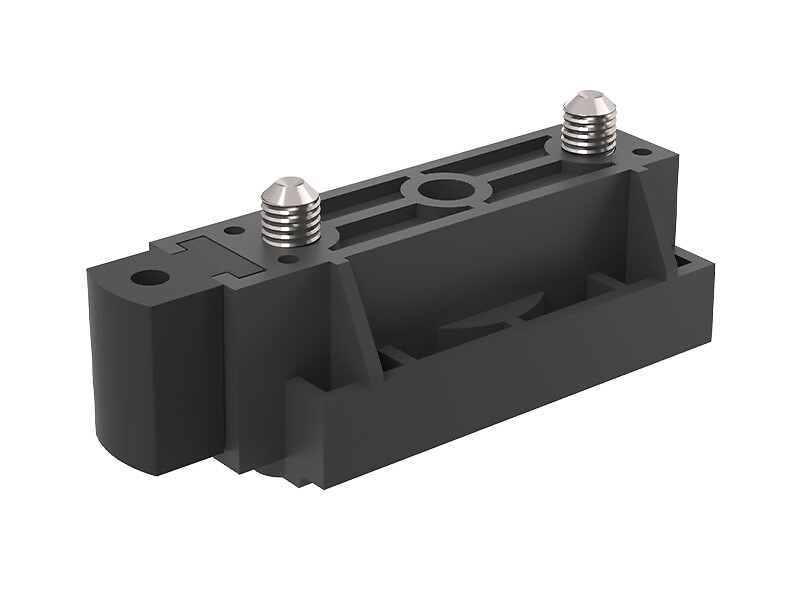

• Safety: new stopper with 2 anchoring points
• Option: special seaside version
• Currently undergoing qualification to XP P26-335 standard

2 new features:

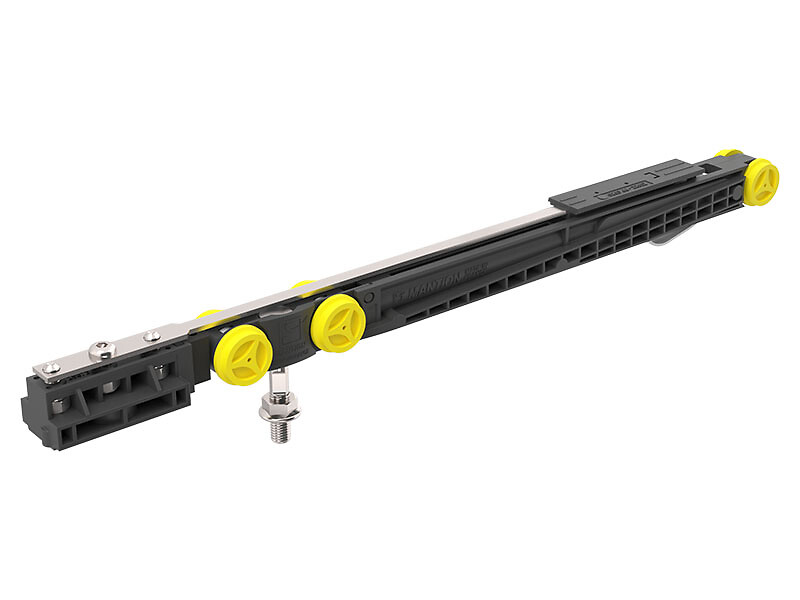

• Innovation: damper for panels up to 60 kg, guiding the panel smoothly into the open or closed position
• Mantion exclusive: shutter catch / sun-breaker stop kit allowing shutters or panels to be secured in the desired position

WIN-SLIDE 2 can support loads of up to 120 kg per panel.

• Panel thickness from 25 to 40 mm (up to 80 mm for single-track sun-breakers)
• Aluminium tracks available from 2 to 6 metres
• Suitable for wall-mounted or ceiling-mounted installation
• New stoppers feature 2 anchoring points for enhanced operational safety
