WIN-FOLD 3: all the expertise of the European specialist in a reliable and aesthetic system.

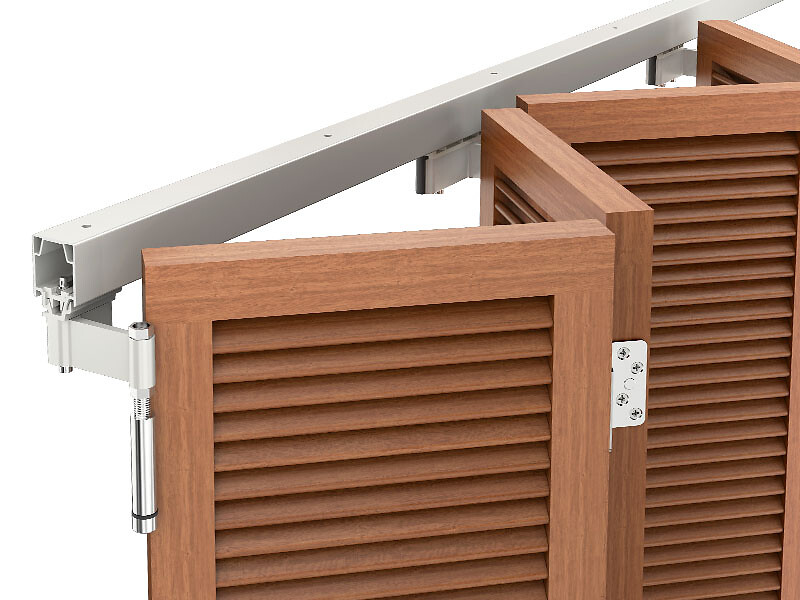

• RELIABLE: to ensure long-term resistance to weather conditions, the fasteners and hinges are made from stainless steel, while the hangers and guides are manufactured from anodised aluminium. The load-bearing rollers are mounted on ball bearings and equipped with a spherical joint to guarantee consistently smooth operation over time. An anti-derailment system prevents the bottom guides from leaving the guide profile during shutter movement.

• AESTHETIC: when the shutter is closed, the track and guide profile are concealed behind the panels, creating visual continuity between adjacent shutters and between shutters on different storeys. Tracks and guide profiles are available in anodised and mill finish versions.

Maximum weight per panel: 25 kg

Available panel thicknesses: 30 to 34 mm & 36 to 40 mm

Panel dimensions: max. 600 × 3000 mm, max. 0.9 m²

Track: aluminium

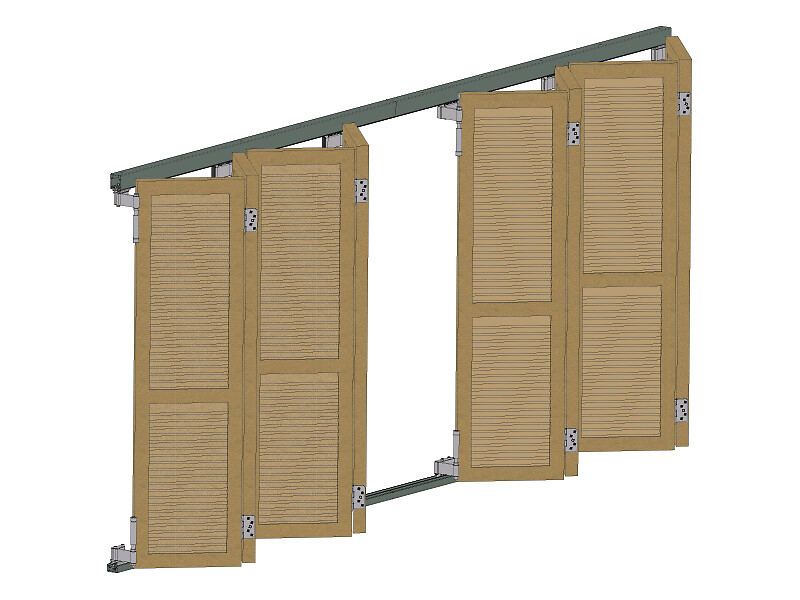

Mechanism: straight folding system

Design: customisable, wood / sheet metal / PVC, etc.

Ergonomic 2-point lock

Currently undergoing qualification to XP P26-335 standard.
