Interior door

CADETTE – Straight sliding system for wooden doors

CADETTE – Straight sliding system for wooden doors - Image 0 CADETTE – Straight sliding system for wooden doors - Image 1 CADETTE – Straight sliding system for wooden doors - Image 2 CADETTE – Straight sliding system for wooden doors - Image 3 CADETTE – Straight sliding system for wooden doors - Image 4 CADETTE – Straight sliding system for wooden doors - Image 5 CADETTE – Straight sliding system for wooden doors - Image 6
CADETTE – Straight sliding system for wooden doors - Image 0 CADETTE – Straight sliding system for wooden doors - Image 1 CADETTE – Straight sliding system for wooden doors - Image 2 CADETTE – Straight sliding system for wooden doors - Image 3 CADETTE – Straight sliding system for wooden doors - Image 4 CADETTE – Straight sliding system for wooden doors - Image 5 CADETTE – Straight sliding system for wooden doors - Image 6

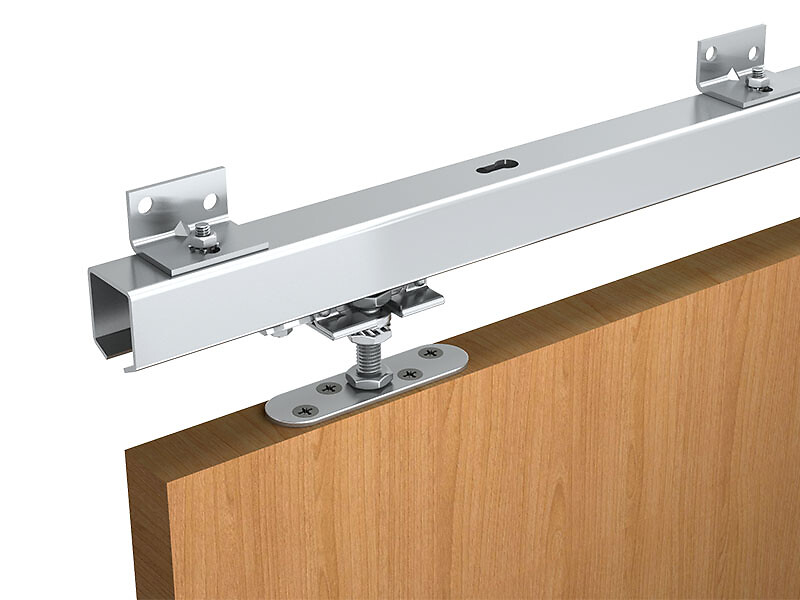

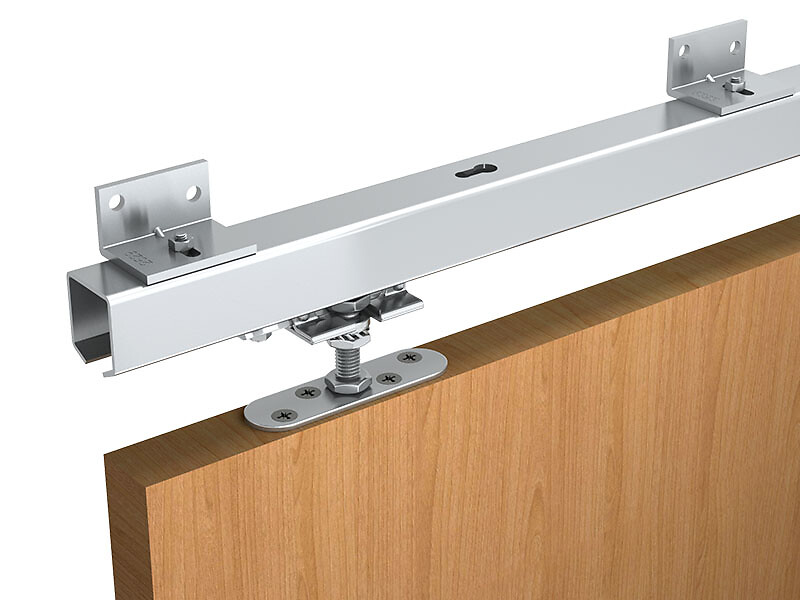

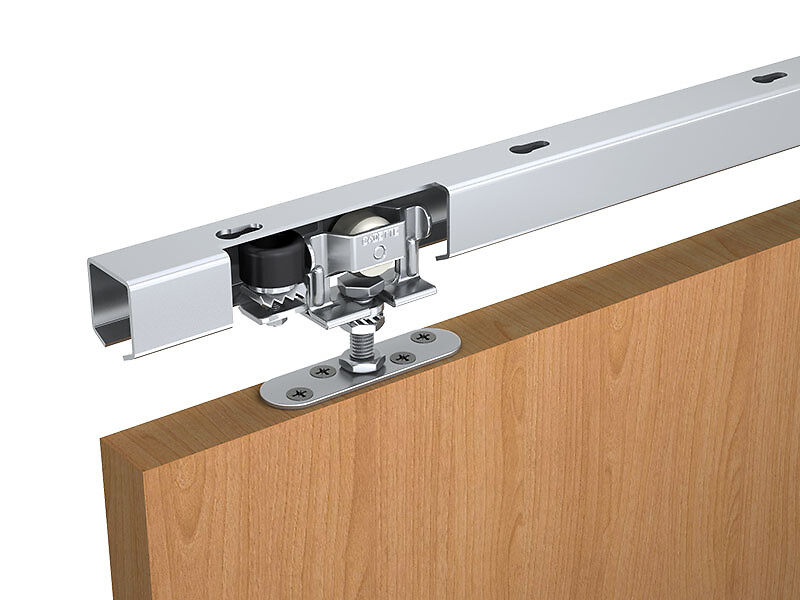

Adjustable hanger sliding system, suitable for both indoor and outdoor use.

• The multidirectional adjustable bolt improves system durability and compensates for imperfections in the installation surface

• Smooth and quiet operation thanks to the nylon roller mounted on a self-lubricating bush

• Can be used with a single or double track (paired tracks)

More details

The CADETTE – Straight sliding system for wooden doors range offers a wide variety of configurations, so you’re sure to find the one that suits your project

DISCOVER THE RANGE
Made in France since 1920
EPD
EN 1527
Garantie 25 ans
Share this product sheet
Facebook Instagram X

Discover projects completed with

CADETTE – Straight sliding system for wooden doors

VIEW PROJECTS

FULL DESCRIPTION

Adjustable hanger sliding system, suitable for both indoor and outdoor use.

• The multidirectional adjustable bolt improves system durability and compensates for imperfections in the installation surface

• Smooth and quiet operation thanks to the nylon roller mounted on a self-lubricating bush

• Can be used with a single or double track (paired tracks)

Selection PREMIUM

A product with flawless finishes for an exceptional result.

Technical datasheet

Product class Basic
System type Sliding door
Country of manufacture France
Guarantee 25 years - 100,000 cycles
Brand MANTION
Application Interior door
Door material Wooden frame
Fixing type Wall-mounted
Ceiling-mounted
Possible configuration 1 panel
2 opposing panels
Door weight From 10 to 40 kg
Catalogue Catalog 113
Track material Galvanized steel
Aluminium

DISCOVER THE RANGE CADETTE – Straight sliding system for wooden doors

Select your Set (2 products)

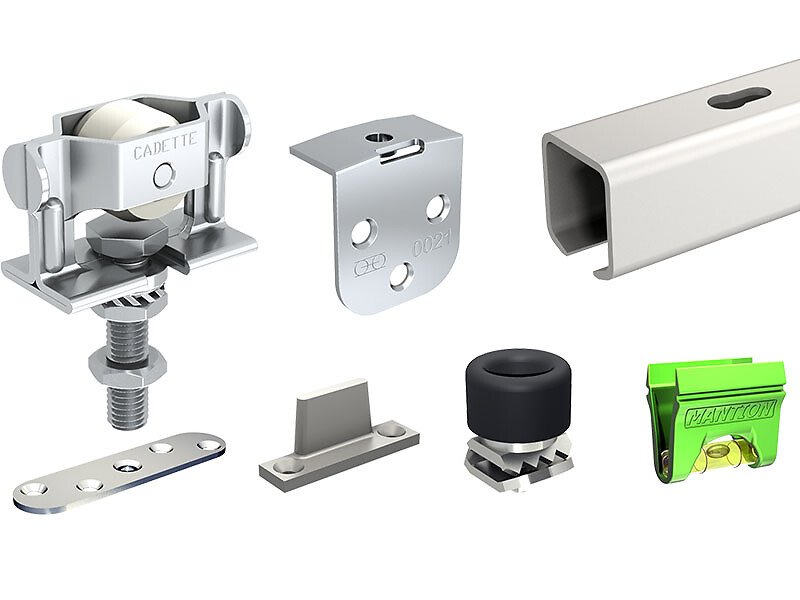

Set - 1.85 m aluminium rail

Set - 1.85 m aluminium rail

Reference : CAD185A-1

Set for 40 Kg doors.

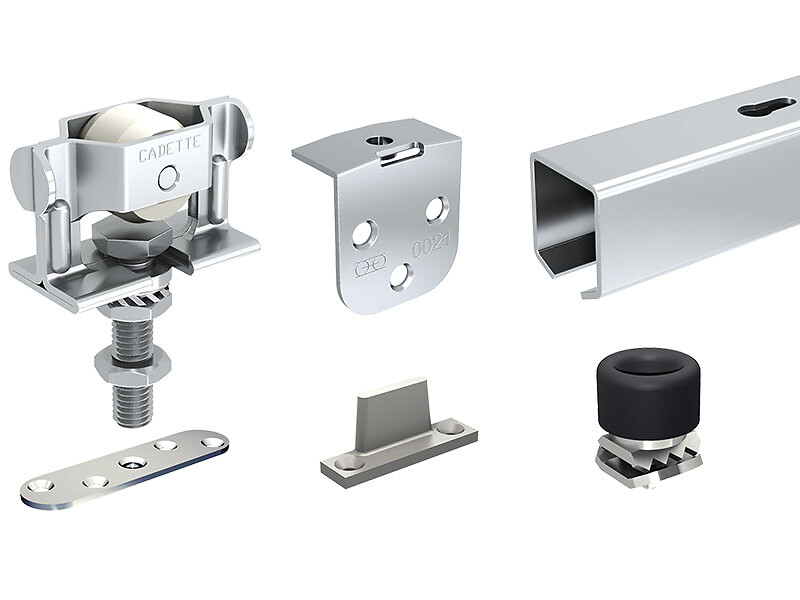

Set - 1.85 m steel rail

Set - 1.85 m steel rail

Reference : CADETT185-1

Set for 40 kg doors.

Select your Track (6 products)

Steel rail - 1.55 m

Steel rail - 1.55 m

Reference : 2525F/155

Galvanised steel rail 27 x 24.5 mm, thickness 1.5 mm, drilled and countersunk every 110 mm. Length of 1.55 m.

Steel rail - 1.85 m

Steel rail - 1.85 m

Reference : 2525F/185

Galvanised steel rail 27 x 24.5 mm, thickness 1.5 mm - drilled and countersunk every 110 mm. Length of 1.85 m.

Steel rail - 4 m

Steel rail - 4 m

Reference : 2525F/400

Galvanised steel rail 27 x 24.5 mm, thickness 1.5 mm, drilled and countersunk every 110 mm. Length of 4 m.

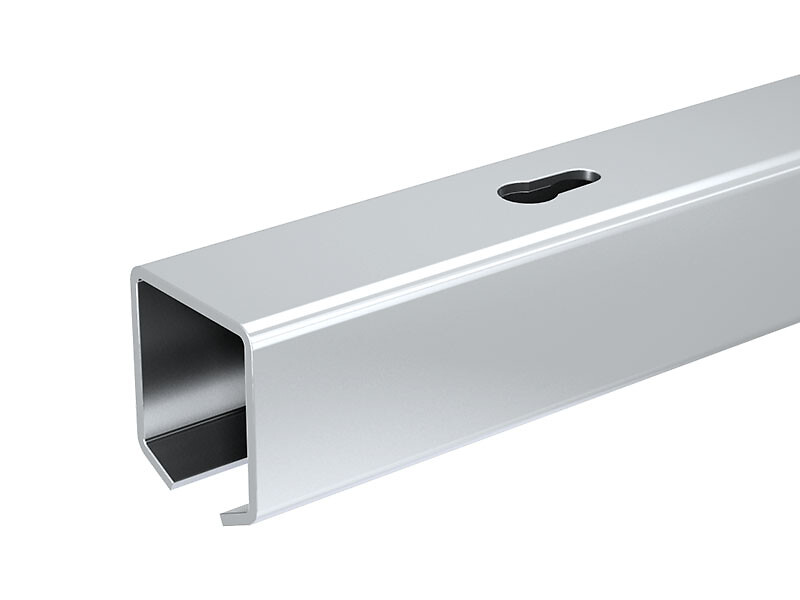

Steel rail - 5 m

Steel rail - 5 m

Reference : 2525F/500

Galvanised steel rail 27 x 24.5 mm, thickness 1.5 mm - drilled and countersunk every 110 mm. Length of 5 m.

Steel rail - 6 m

Steel rail - 6 m

Reference : 2525F/600

Galvanised steel rail 27 x 24.5 mm, thickness 1.5 mm - drilled and countersunk every 110 mm. Length of 6 m.

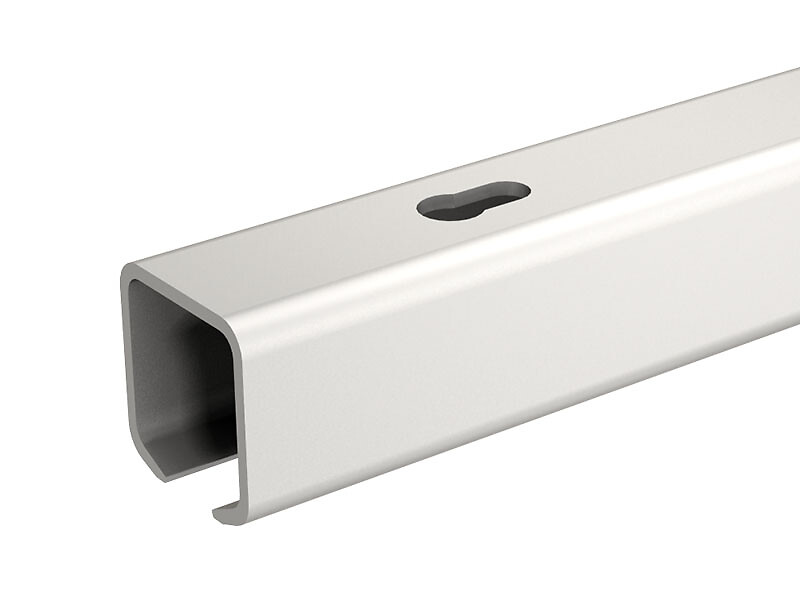

Aluminium rail - 1.85 m

Aluminium rail - 1.85 m

Reference : 2526F/185

Raw aluminium rail, 26 x 25 mm section, drilled and countersunk every 110 mm along a length of 1.85 m.

Select your Gear (1 product)

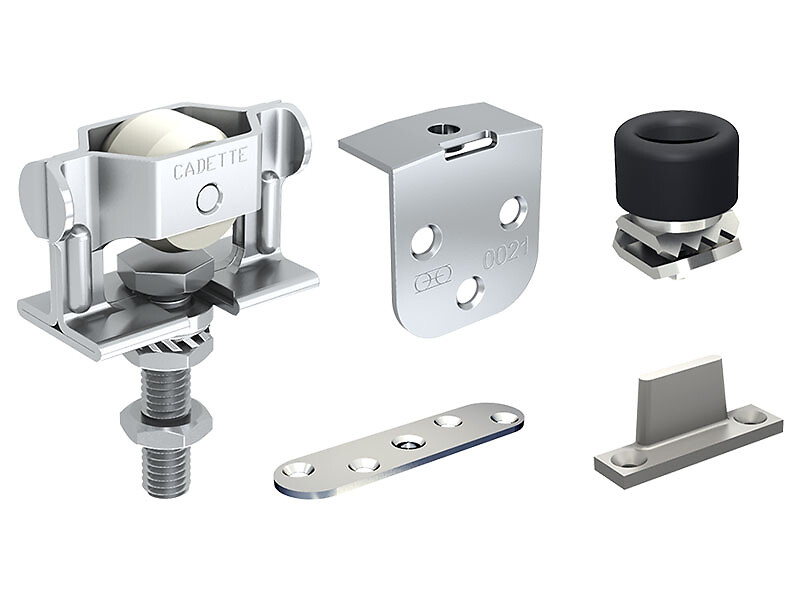

Trim

Trim

Reference : CADETT

Trim.

Select your Hanger (1 product)

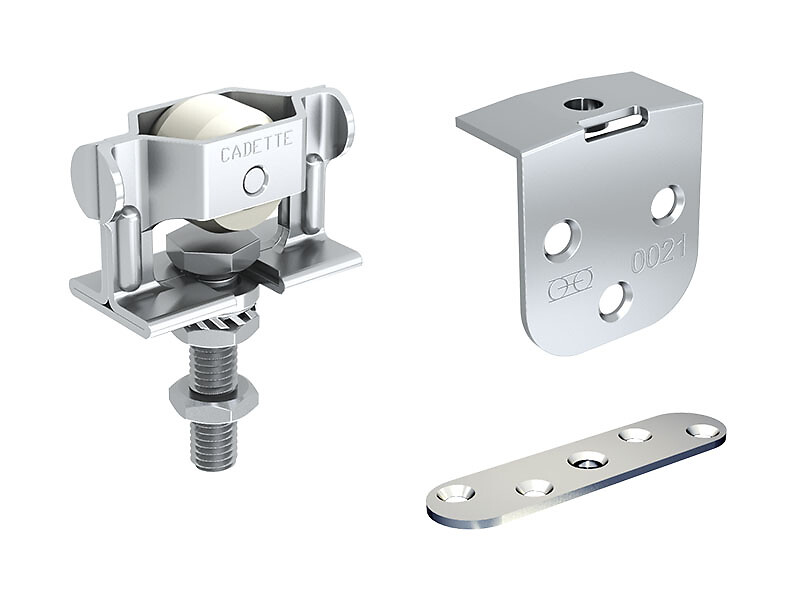

CADETTE frame with nylon roller

CADETTE frame with nylon roller

Reference : 0222

CADETTE frame with nylon roller mounted on a rilsan ring, supplied with plates 0026 and 0021.

Select your Angle plate (2 products)

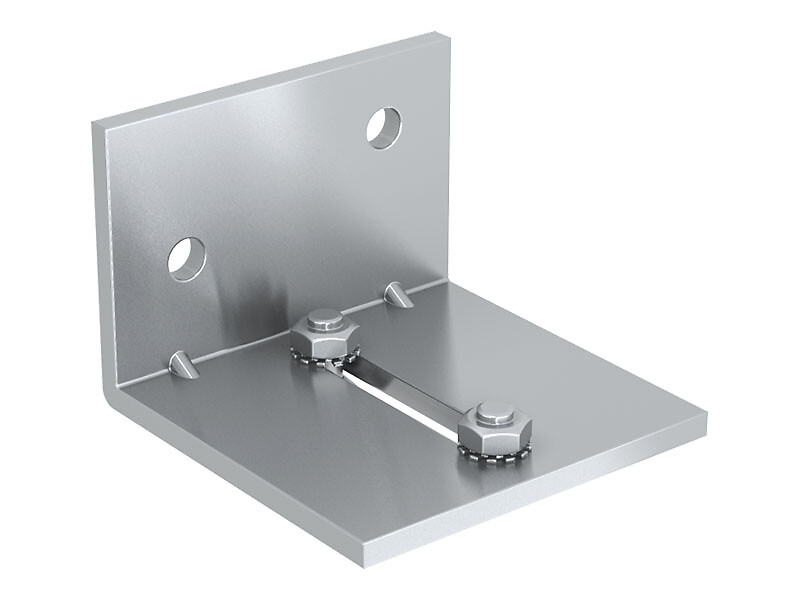

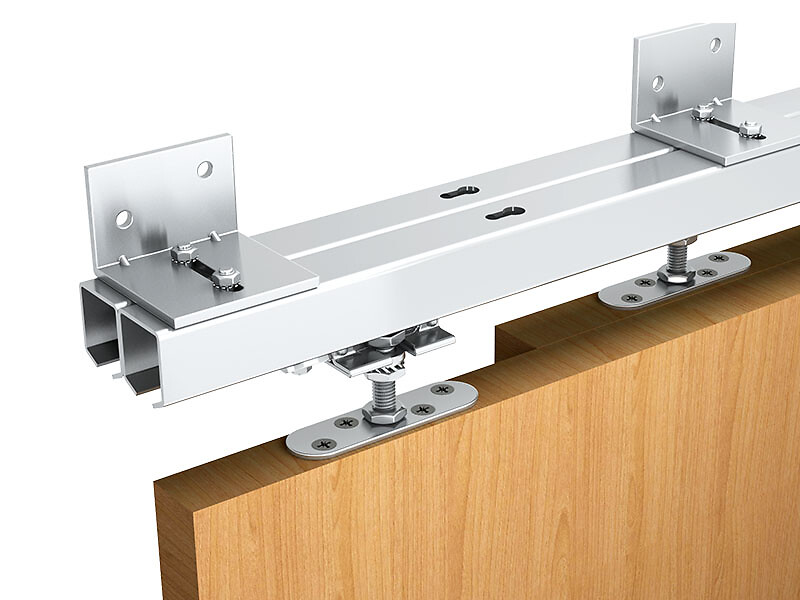

Bracket support for twin rails

Bracket support for twin rails

Reference : 2528D

Bracket support for twin rails, zinc-coated steel with a thickness of 3 mm.

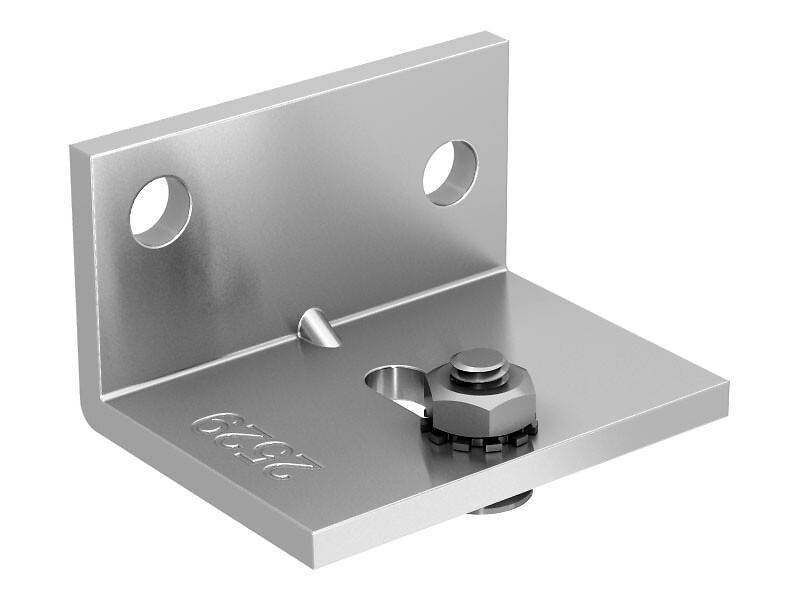

Reinforced bracket support

Reinforced bracket support

Reference : 2529

Reinforced bracket support for wall mounting of the rail.

Select your Fixing plate (1 product)

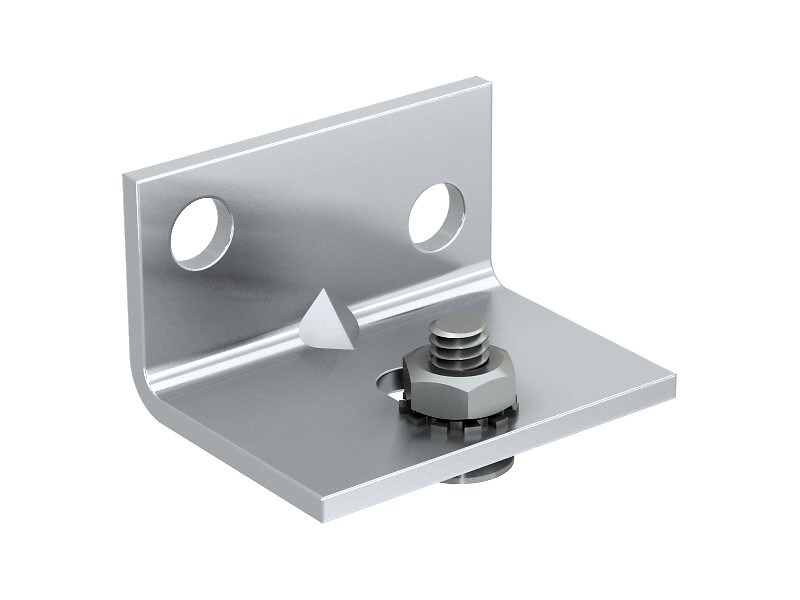

Bracket support for wall mounting

Bracket support for wall mounting

Reference : 2528

Bracket support for wall mounting of the rail (MA40A), supplied with screw, nut, and washer. Height = 17 mm. Length = 22 mm. Thickness = 18/10ths.

Select your Wrap-around support (1 product)

Bracket support for wall mounting

Bracket support for wall mounting

Reference : 2529-5

Angle bracket for wall mounting of the 2525 rail.

Select your Plate (4 products)

Plate for flat mounting

Plate for flat mounting

Reference : 0021

Plate for mounting on flat surface with threaded hole Ø M8.

Recessed panel

Recessed panel

Reference : 0022

Recessed plate for mounting frame fixation.

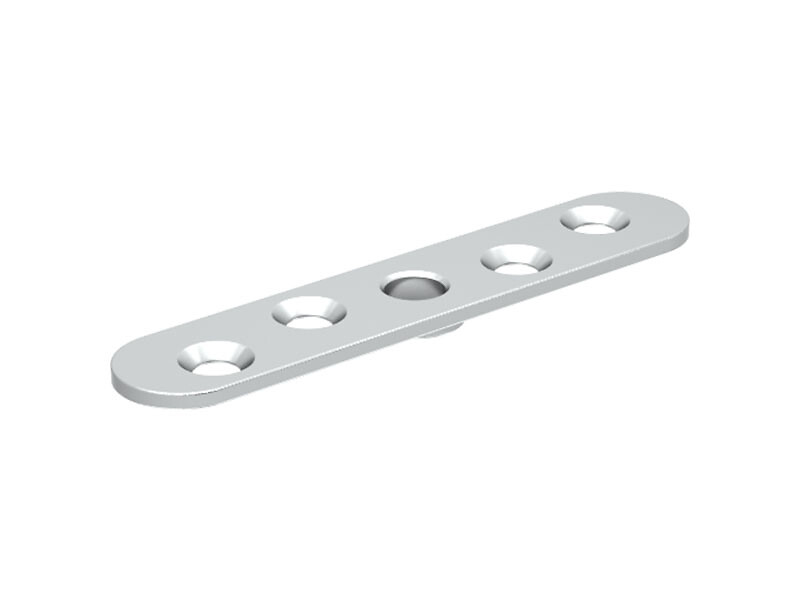

Mounting plate for edge fixing

Mounting plate for edge fixing

Reference : 0023

Plate for edge mounting with M8 threaded hole.

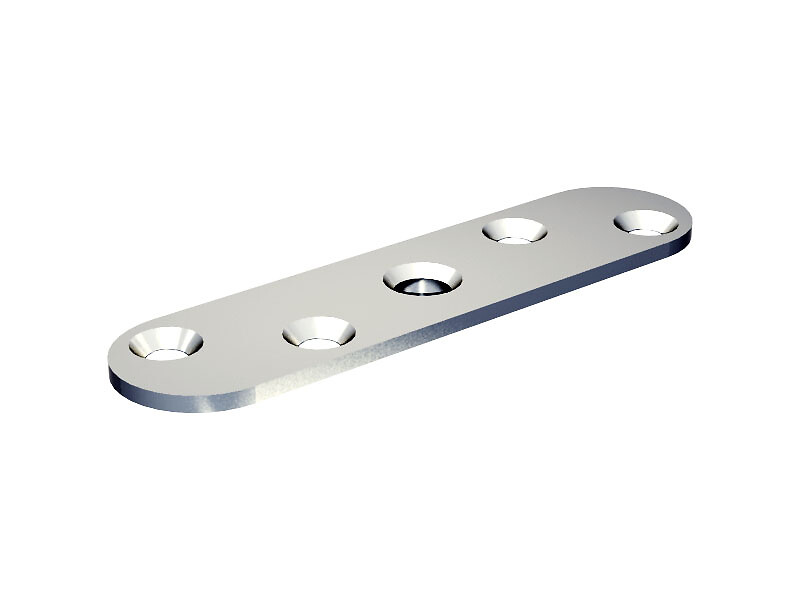

Plate for edge mounting

Plate for edge mounting

Reference : 0026

Plate for edge mounting with a threaded hole Ø M8.

Select your End stop (1 product)

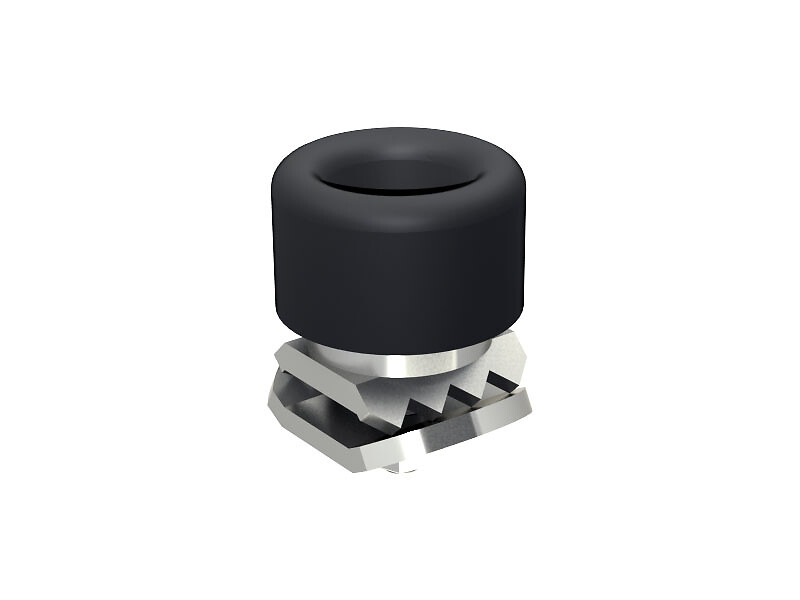

End stop

End stop

Reference : 1097

End stop for 2525 rail.

Select your Lower guide (2 products)

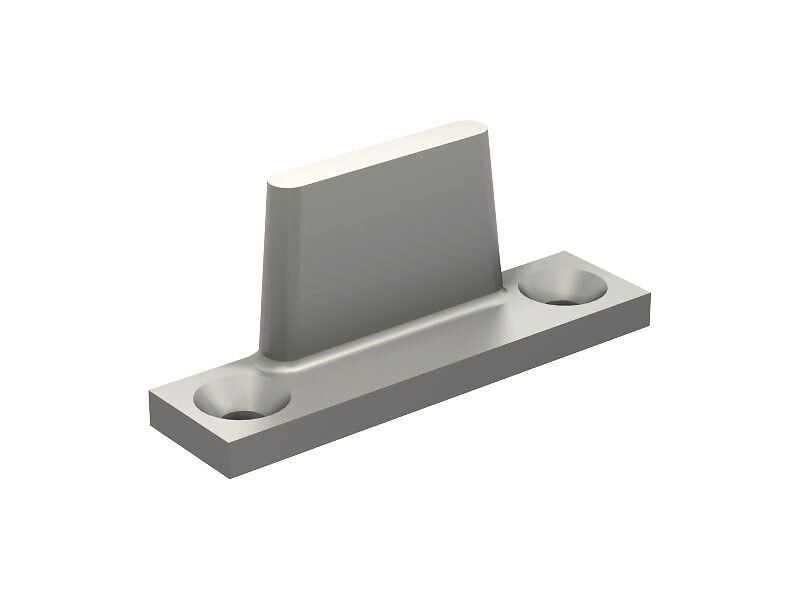

Low guide in polyamide

Low guide in polyamide

Reference : 1103

Low polyamide guide to screw for 6x18 mm groove.

Adjustable low guide

Adjustable low guide

Reference : RD-1

Adjustable bottom guide. For doors 16 to 45 mm thick.

Select your Sealing joint and brush (1 product)

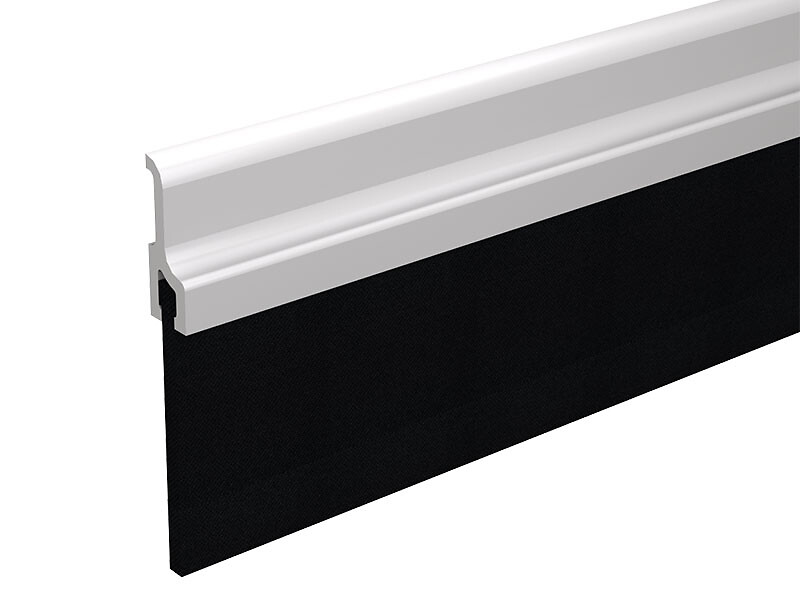

Sealing brush - 1.05 m

Sealing brush - 1.05 m

Reference : 1150/105

Sealing brush with PVC backing.

L = 1.05 m.

Total height 35 mm, brush 15 mm.

Select your Handle (5 products)

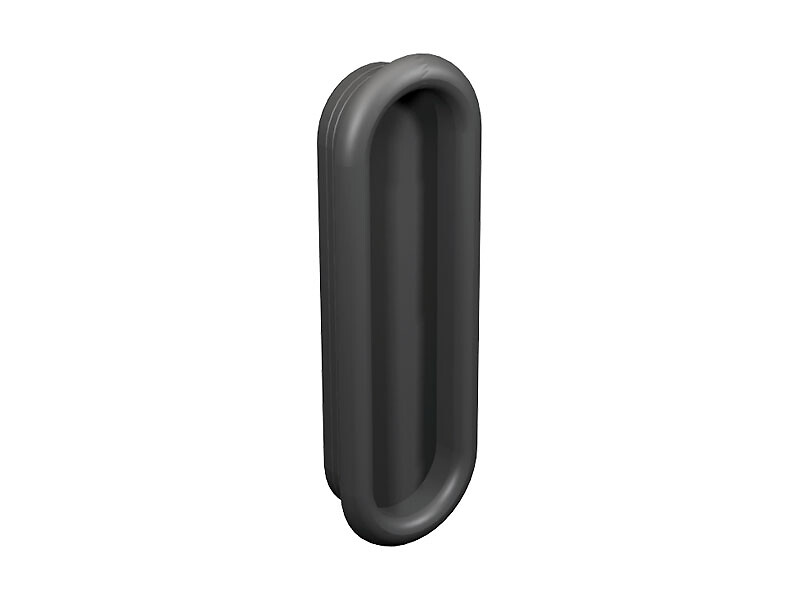

Black recessed handle

Black recessed handle

Reference : 1293

Recessed cup handle, black ABS - L = 75 mm - Width: 20 mm.

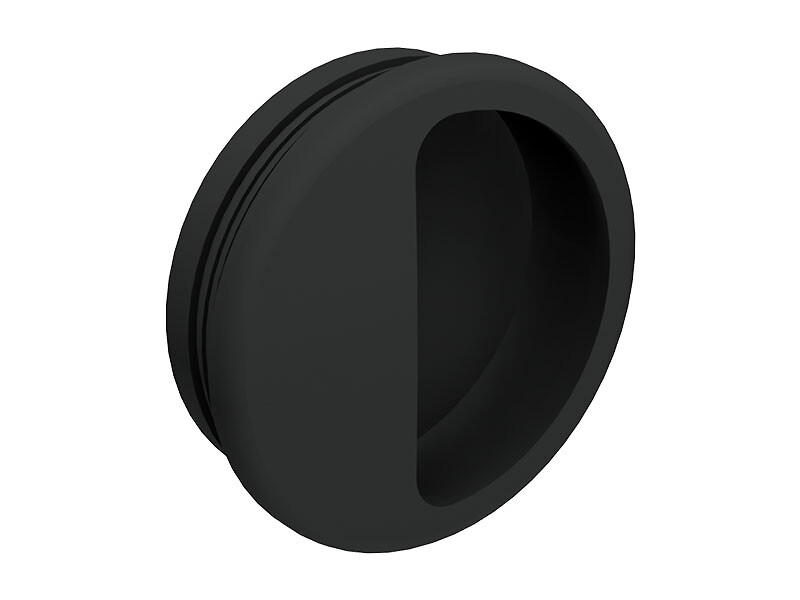

Round black recessed handle

Round black recessed handle

Reference : 1293-1

Round recessed handle in ABS DIAM 50 mm. Colour black.

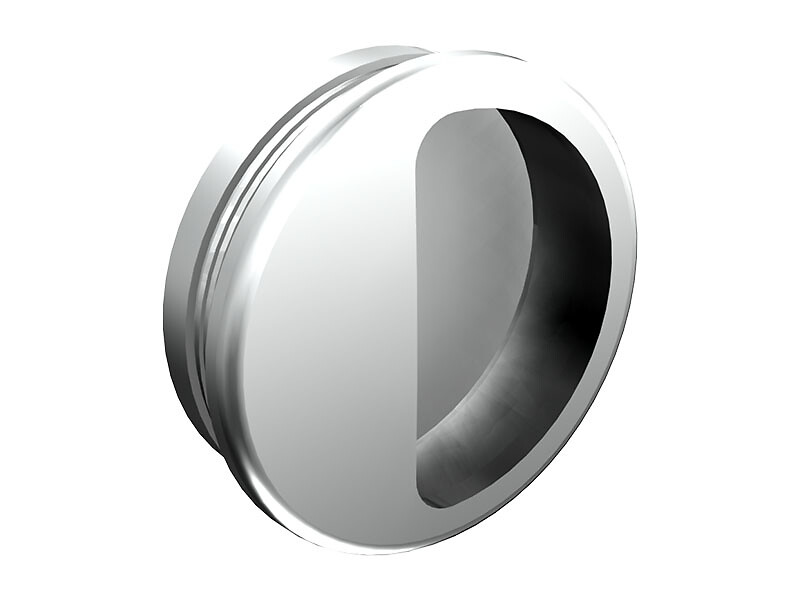

Silver-coloured recessed handle

Silver-coloured recessed handle

Reference : 1293-6

Round recessed cup handle in ABS DIAM 50 mm. Silver colour.

Steel handle

Steel handle

Reference : RD-3B

Steel handle with a "black" finish.

Steel recessed handle

Steel recessed handle

Reference : RD-11B

Steel recessed handle with a "black" finish.
