Full Description

Set for 2 opposing leaves up to a maximum of 80 kg, wall-mounted installation, manual non-synchronised movement, for openings up to 1900 mm wide.

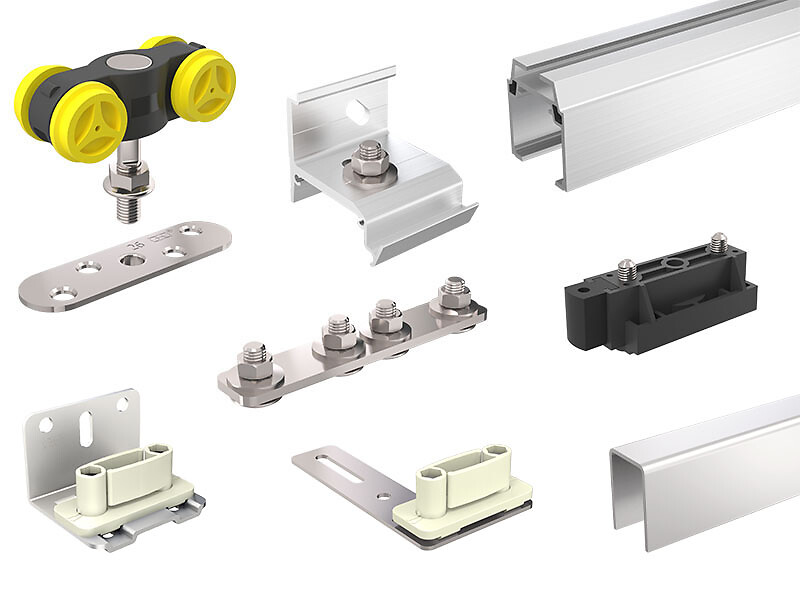

This set contains:

• 2 rails 11208, length 2 m
• 4 mounts 11280XA2 equipped with 4 rollers, axles mounted on ball bearings, M8 screws in A2 stainless steel
• 4 plates 0026XA2 in A2 stainless steel to be screwed on edge
• 4 stops 11286XA2 with A2 stainless steel screws
• 8 adjustable fixing brackets 11293, in raw aluminium with A2 stainless steel screws
• 1 rail connector in A2 stainless steel
• 2 adjustable guides 1128ARG in white plastic, for U 25×17 and 30×30, on a bracket in cataphoresis-treated steel + white polyester paint RAL 9010
• 3 adjustable guides 1131XRG in white plastic, for U 25×17 and 30×30 on an inclinable plate in A2 stainless steel
• 2 U profiles 1109/150 25×17 in galvanized steel, length 1.5 m.
