FULL DESCRIPTION

Simplicity, reliability and quick installation:

• No connection to the household electrical network required

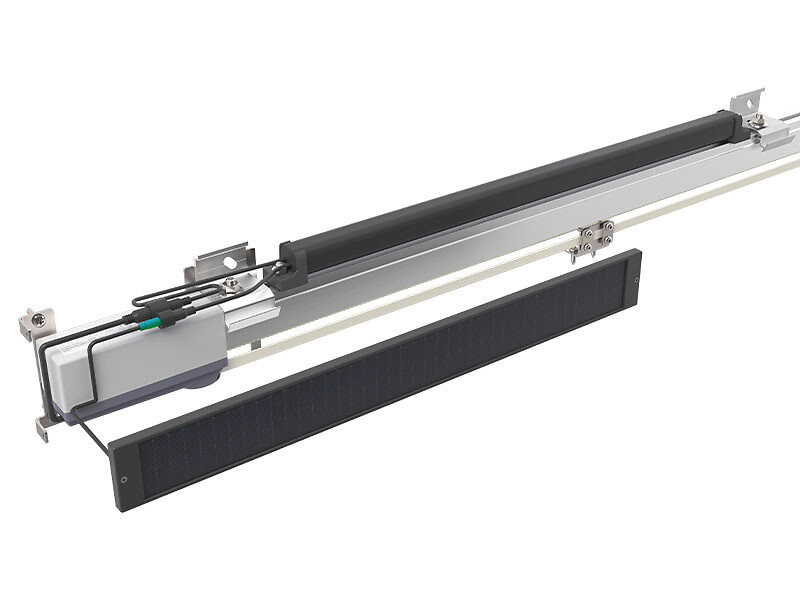

• Plug & Play: components connected using simple connectors (motor / solar panel / battery)
• Energy autonomous: no power consumption and long autonomy, up to 30 days without light
• Operation of 1 to 4 panels, with a total weight of up to 200 kg
• Integrated brushless technology
• Designed and manufactured in France by MANTION!

Maximum total weight: 80 kg (1 panel) – 50 kg (4 panels)

Motor dimensions: 150 × 50 × 73 mm

Power supply voltage: 12 V DC

Autonomy: up to 30 days without light

Motor voltage: 24 V DC

Linear speed: approx. 60 mm/s

Protection rating: IP55

Limit switch type: Dynamic

Operating temperature: -20/+60°C

SYCOMM® Solar motor:

• Power supply voltage: 12 V DC
• Max. power: 25 W
• Dimensions (W × L × H): 150 × 50 × 73 mm
• Protection rating: IP55
• Limit switch type: Dynamic (obstacle detection stop)
• Motor technology: Brushless
• Linear speed: approx. 60 mm/s
• Operating temperature: -20 to +60°C
• Radio frequency: 433.92 MHz
• Motor cable length: 30 cm (3 m extension available as an option)

General data:

• Soft start and soft stop
• Obstacle detection

Compliant with CE requirements according to: EN60335-1:2013; EN60335-2-103:2004+A11:2009; NFP26341; EN61000-6-1:2007; EN61000-6-2:2006; EN61000-6-3:2007; EN61000-6-4:2007; NF 26-341.

Compliant with European Directives: 2006/95/EC; 2006/42/EC; 2004/108/EC; 1999/5/EC; 2002/95/EC.

Note: The values shown are provided for guidance only, depend on specific operating conditions and do not constitute a binding commitment on the part of MANTION. The motorisation is designed for domestic use and installation beneath a pelmet.
