Shutters and sun protection

WIBAT® APPLIQUE – Arm motorisation for swing shutters

WIBAT® APPLIQUE – Arm motorisation for swing shutters  - Image 0 WIBAT® APPLIQUE – Arm motorisation for swing shutters  - Image 1 WIBAT® APPLIQUE – Arm motorisation for swing shutters  - Image 2
WIBAT® APPLIQUE – Arm motorisation for swing shutters  - Image 0 WIBAT® APPLIQUE – Arm motorisation for swing shutters  - Image 1 WIBAT® APPLIQUE – Arm motorisation for swing shutters  - Image 2

WIBAT® APPLIQUE is the motorisation solution for arched and curved swing shutters.

Quick and easy to install, whether for new-build or renovation projects, WIBAT® APPLIQUE adapts to all types of swing shutters and allows you to keep your existing shutters.

  • Fast and easy installation. Available in both radio-controlled and wired versions.
  • Centralised control available for both radio-controlled and wired versions (a home automation controller is required for the wired version)
  • WIBAT® APPLIQUE allows shutters to stop in an intermediate position
  • WIBAT® APPLIQUE opens your shutters without having to open your windows, significantly reducing heat loss
  • Easily reach inaccessible shutters (behind worktops, bathtubs, etc.)
  • WIBAT® APPLIQUE features obstacle detection to ensure user safety: in the event of an obstacle, the shutter automatically returns to its initial position

PANEL CAPACITY / PANEL WIDTH:

50 kg & 1.6 m² MAX. (Min. 40 cm - Max. 80 cm)

Plus de détails

La gamme WIBAT® APPLIQUE – Arm motorisation for swing shutters  propose une multitude de configurations, vous trouverez à coup-sûr celle qui correspond à votre projet

DISCOVER THE RANGE
Made in France since 1920
EPD
EN 1527
Garantie 5 ans
Share this product sheet
Facebook Instagram X

Découvrez les projets réalisés avec

WIBAT® APPLIQUE – Arm motorisation for swing shutters

VIEW PROJECTS

FULL DESCRIPTION

WIBAT® APPLIQUE is the motorisation solution for arched and curved swing shutters.

Quick and easy to install, whether for new-build or renovation projects, WIBAT® APPLIQUE adapts to all types of swing shutters and allows you to keep your existing shutters.

  • Fast and easy installation. Available in both radio-controlled and wired versions.
  • Centralised control available for both radio-controlled and wired versions (a home automation controller is required for the wired version)
  • WIBAT® APPLIQUE allows shutters to stop in an intermediate position
  • WIBAT® APPLIQUE opens your shutters without having to open your windows, significantly reducing heat loss
  • Easily reach inaccessible shutters (behind worktops, bathtubs, etc.)
  • WIBAT® APPLIQUE features obstacle detection to ensure user safety: in the event of an obstacle, the shutter automatically returns to its initial position

PANEL CAPACITY / PANEL WIDTH:

50 kg & 1.6 m² MAX. (Min. 40 cm – Max. 80 cm)

Sélection PREMIUM

Produit aux finitions parfaites pour un rendu d'exception.

Technical datasheet

System type Swing shutter
Country of manufacture France
Guarantee 5 years motor
Brand MANTION
Application Shutters and sun protection
Automation & motorization
Door weight Up to 50 kg
Weight range WIBAT® APPLIQUE Radio
WIBAT®-APPLIQUE Filaire
Catalogue Catalog 313

DÉCOUVREZ LA GAMME WIBAT® APPLIQUE – Arm motorisation for swing shutters

Select your Wheel (1 produit)

Guide without plate mounted on roller cage with nylon olive

Guide without plate mounted on roller cage with nylon olive

Reference : 1050

Guide without plate mounted on roller cage with nylon olive.

Select your Motorisation kit (6 produits)

PM_WIBAT_APPLIQUE

WIBAT® radio motorisation left and right wall mount

Reference : W0001000

  • Surface-mounted motorisation

  • For 2-leaf hinged shutter (left + right)

  • White casing and arms RAL 9010

  • Radio control (remote control)

  • Maximum leaf surface: 1.6 m²

  • Maximum leaf weight: 50 kg

  • Warranty: 5 years

PM_WIBAT_APPLIQUE

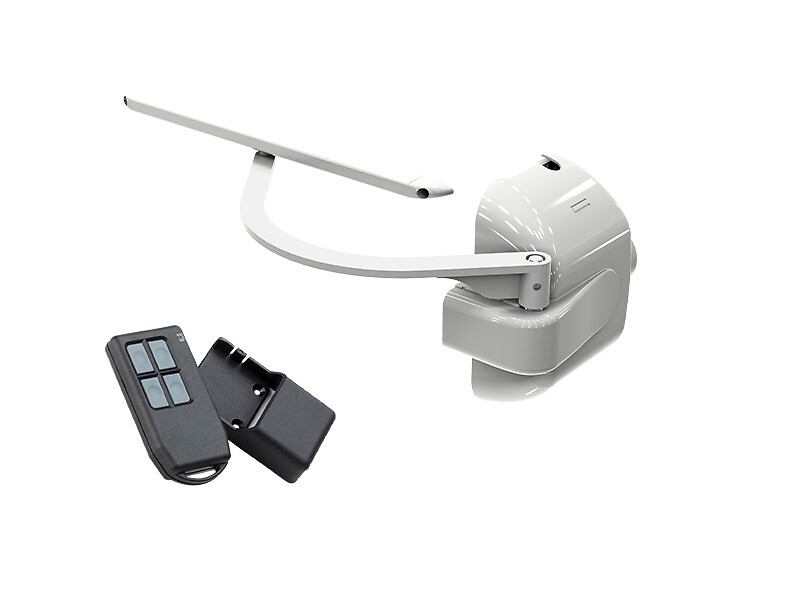

WIBAT® radio motorisation left wall mount

Reference : W0001020

  • Surface-mounted motorisation

  • For single-leaf swing shutter (left side viewed from outside)

  • White casing and arm RAL 9010

  • Radio control (remote control)

  • Maximum leaf surface area: 1.6 m²

  • Maximum leaf weight: 50 kg

  • Warranty: 5 years

PM_WIBAT_APPLIQUE

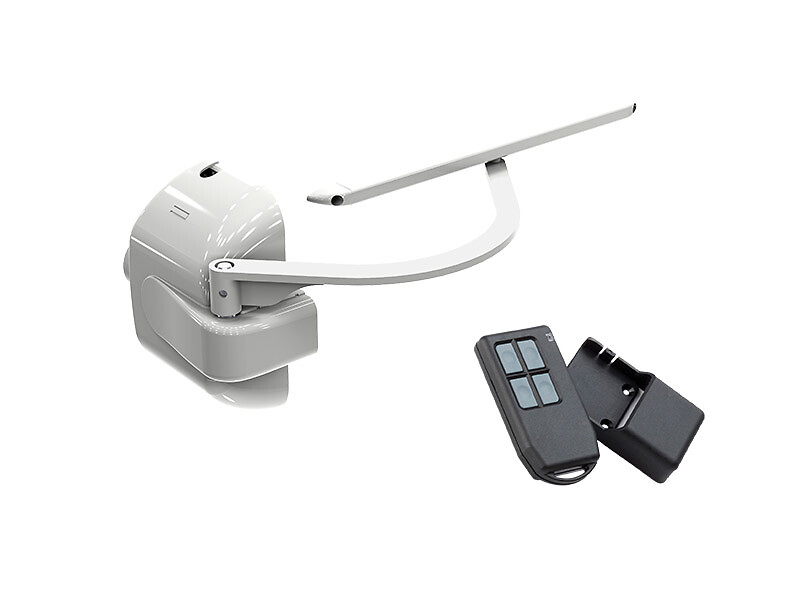

WIBAT® radio motorisation right wall light

Reference : W0001030

  • Surface-mounted motorisation

  • For single-leaf hinged shutter (right side viewed from outside)

  • White casing and arm RAL 9010

  • Radio control (remote control)

  • Maximum leaf surface: 1.6 m²

  • Maximum leaf weight: 50 kg

  • Warranty: 5 years

PM_WIBAT_APPLIQUE

WIBAT® wired motorisation, left and right wall-mounted

Reference : W0001040

  • Surface-mounted motorisation

  • For 2-leaf hinged shutters (left + right)

  • White casing and arms RAL 9010

  • Wired control (switch)

  • Maximum leaf surface: 1.6 m²

  • Maximum leaf weight: 50 kg

  • Warranty: 5 years

PM_WIBAT_APPLIQUE

WIBAT® wired motorisation left wall mount

Reference : W0001050

  • Surface-mounted motorisation

  • For single-leaf hinged shutter (left side viewed from outside)

  • White casing and arm RAL 9010

  • Wired control (switch)

  • Maximum leaf surface: 1.6 m²

  • Maximum leaf weight: 50 kg

  • Warranty: 5 years

PM_WIBAT_APPLIQUE

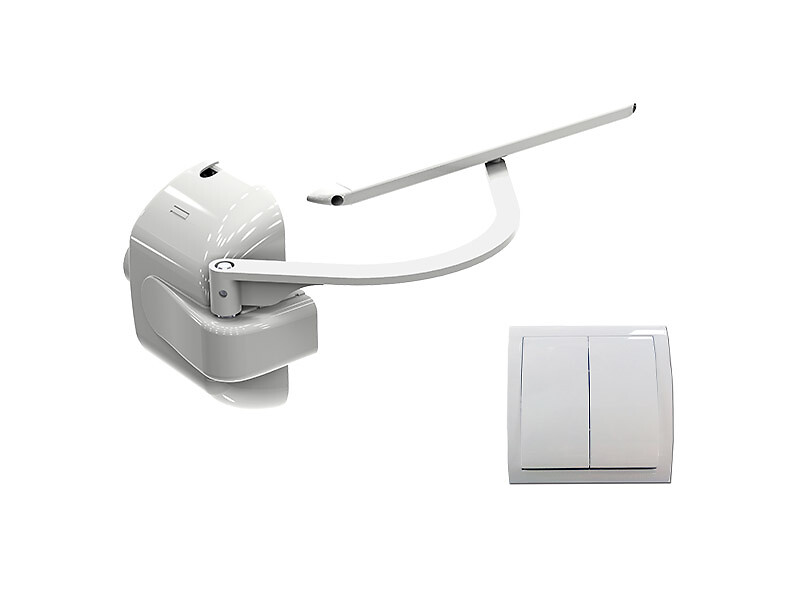

WIBAT® wired motorisation right wall-mounted

Reference : W0001060

  • Surface-mounted motorisation

  • For single-leaf hinged shutter (right side viewed from outside)

  • White casing and arm RAL 9010

  • Wired control (switch)

  • Maximum leaf surface: 1.6 m²

  • Maximum leaf weight: 50 kg

  • Warranty: 5 years

Select your End stop (3 produits)

PM_SLIDUP_COMPOSITE_STOP

Composite stop with elastomer buffer for hinged shutter - beige

Reference : C0012119BE

  • Screw-on composite stop for hinged shutter
  • Upper pad in elastomer
  • Colour: beige
  • Dimensions: 40 x 27 mm
  • Warranty: 2 years
  • Quantity: 1
PM_SLIDUP_COMPOSITE_STOP

Composite stop with elastomer buffer for hinged shutter - white

Reference : C0012119BL

  • Composite screw-on stop for hinged shutter
  • Top pad in elastomer
  • Colour: white
  • Dimensions: 40 x 27 mm
  • Warranty: 2 years
  • Quantity: 1
PM_SLIDUP_COMPOSITE_STOP

Composite stop with elastomer buffer for hinged shutter - black

Reference : C0012119N

  • Composite screw-on stop for hinged shutter
  • Top pad in elastomer
  • Colour: black
  • Dimensions: 40 x 27 mm
  • Warranty: 2 years
  • Quantity: 1

Select your Control accessories (4 produits)

Wired switch with 2 push buttons for hinged and sliding shutters

Wired switch with 2 push buttons for hinged and sliding shutters

Reference : C0001050

  • Wired switch with 2 push buttons for hinged and sliding shutters
  • Compatible with wired motorisations
  • Dimensions: 80 x 80 mm
  • Quantity: 1
Programmable radio repeater

Programmable radio repeater

Reference : C0004760

  • Allows doubling the radio range
  • Accessory compatible with our radio controls
  • Range: 30 m
  • Warranty: 2 years
4-channel programmable radio remote control for doors and shutters

4-channel programmable radio remote control for doors and shutters

Reference : C0004770

  • 4-channel programmable radio remote control
  • Allows you to control your radio door or shutter motorisation
  • Dimensions: 80 x 40 mm
  • Quantity: 1
2-button programmable radio switch for doors and shutters

2-button programmable radio switch for doors and shutters

Reference : C0004780

  • Programmable radio switch with 2 push buttons
  • Allows you to control your radio door or shutter motorisation
  • Colour: white
  • Dimensions: 80 x 80 mm
  • Quantity: 1

Select your Closing accessories (6 produits)

Electromechanical lock for hinged shutter - side cable - latch on the left

Electromechanical lock for hinged shutter - side cable - latch on the left

Reference : W0000470

  • Ensures the shutter panels remain closed
  • Improved comfort and safety
  • Side cable outlet and bolt on the left
  • Warranty: 2 years
  • Quantity: 1
Electromechanical lock for hinged shutter - side cable - latch on the right

Electromechanical lock for hinged shutter - side cable - latch on the right

Reference : W0000471

  • Ensures the shutter panels remain securely closed
  • Improved comfort and safety
  • Side cable outlet and bolt on the right
  • Warranty: 2 years
  • Quantity: 1
Electromechanical lock for hinged shutter - vertical cable - latch on the left

Electromechanical lock for hinged shutter - vertical cable - latch on the left

Reference : W0000472

  • Ensures the shutter panels remain closed
  • Improved comfort and safety
  • Vertical cable outlet and latch on the left
  • Warranty: 2 years
  • Quantity: 1
Electromechanical lock for hinged shutter - vertical cable - latch on the right

Electromechanical lock for hinged shutter - vertical cable - latch on the right

Reference : W0000473

  • Ensures that the hinged shutters remain in the closed position
  • Improved comfort and safety
  • Vertical cable outlet and bolt on the right
  • Warranty: 2 years
  • Quantity: 1
Kit of 1 electromagnetic lock for 1 pair of hinged shutters

Kit of 1 electromagnetic lock for 1 pair of hinged shutters

Reference : W0000760

  • Ensures the shutters remain closed
  • Improved comfort and safety
  • 1 lock for 1 pair of shutters (top or bottom)
  • Warranty: 2 years
  • Quantity: 1
Kit of 2 electromagnetic locks for 1 pair of hinged shutters

Kit of 2 electromagnetic locks for 1 pair of hinged shutters

Reference : W0000770

  • Ensures that the hinged shutters remain in the closed position
  • Improved comfort and safety
  • 2 locks for 1 pair of hinged shutters (top and bottom)
  • Warranty: 2 years
  • Quantity: 2

Select your Shutter stay (1 produit)

Multi-angle protractor for hinged shutter

Multi-angle protractor for hinged shutter

Reference : W0000400

  • Multi-leaf stainless steel compass for motorised hinged shutter
  • Allows the operation of a second leaf linked to a motorised leaf
  • Complete kit ready for installation
  • Warranty: 2 years
  • Quantity: 1
